New release 2019/05/24
This test unit is change Y axis from motor slide to Sonic slide. X axis and Z axis is keep traditional type.
Resin tank is using world standard form type incubation cartridge.

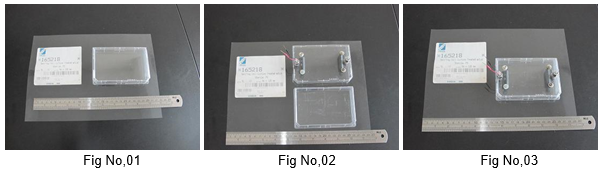

Fig No,01 This is standard type of incubation cartridge.
Fig No,02 We put small speaker in side of cartridge
Fig No,03 Power cable is come from top side

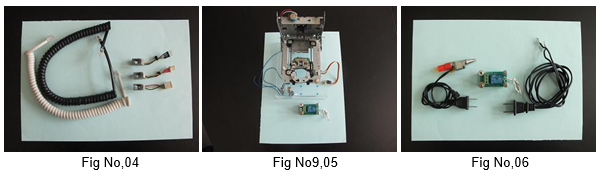

Fig No,04 RJ-45/35 socket is connected for PIN/PLUG type
Fig No,05 Solid switch for power
Fig No,06 Here is power for plastic FDM head.

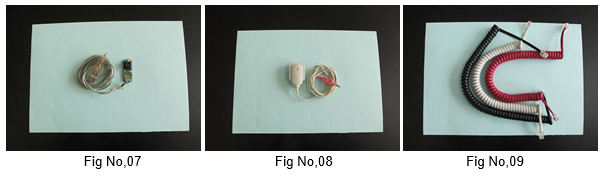

Fig No,07 Video CCD unit / USB interface
Fig No,08 Micro phone and plug interface
Fig No,09 Each signal cable for each color

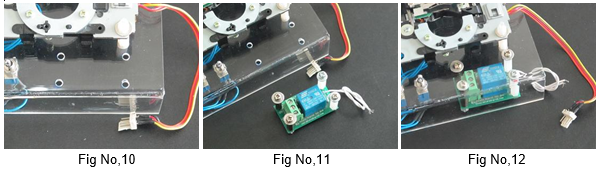

Fig No,10 Hole for Solid switch unit
Fig No,11 Set tope side and long spacer
Fig No,12 Setting unit
