3Dprinter Parts

1. Rapid Prototype Technology Software

---

[ Object oven operator ]

[ Object oven ] is set modeling condition about size/angle/place/resolution and create of machine control data.

First generation product was shipping start in 1990 for Windows 3.1. Since 1995 we are shipping of this second generation production for Windows 95. This product was follow of Windows 98/me/2000/Vista/7/8 without any modify of program. Current products corresponds to the successor OS in the future.

Product name : [ Object oven operator ] English version
Product No :  002465 ( industry grade )
Corresponding OS : Microsoft Windows 95/98/ME/2000/XP/Vista/7/8
Input data  : STL / HP-GL / DXF (3Dface)
Output data : HP-GL

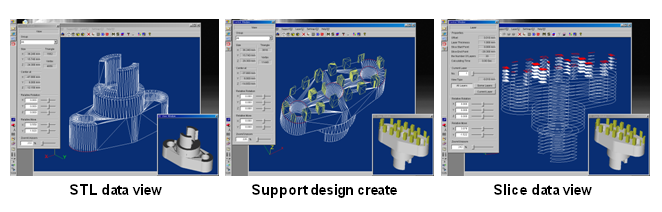

Function : Edit of modeling data / Create support design / Create slice data

[ Media data convertor ] Medical grade for Tissue Engineering

Product name :  [ Media data convertor ]
Product No  : 002465M ( Medical grade ) Att No
Corresponding OS : Microsoft Windows 95/98/ME/2000/XP/Vista/7/8 Att No,2
Input data : STL / HP-GL / DXF (3Dface) Att No,3
Output data : HP-GL
Function  :   Edit of modeling data / Create support design / Create slice data

Attention No.1 : Medical grade is need to follow to each country law. Please contact to us.
No. 2 : Corresponding OS (MS-DOS/CPM/UNIX) is need data converter.
No. 3 : CT/MRI data ( DICOM format ) is need data converter.

[ Object oven commander ]

Product name :  [ Object oven commander ] English version
Product No :   002502 ( industry version )
002502M : ( Medical grade )
Corresponding OS : Microsoft Windows 95/98/ME/2000/XP/Vista/7/8
Input data   :    HP-GL

2. Rapid Prototype Technology Hardware

---

[ Laser driver APC ]

[ Laser unit ] 200mW

[ Motion control card ]

[ Motion control unit ]

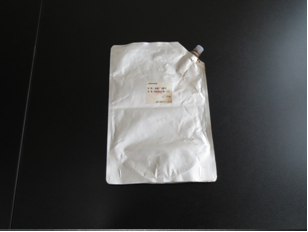

[ Photo polymer NAF200N ]

This product is a based by urethane resin polymer and curable by light in the visible light region. This product is colored by black and mix with cumene hydroperoxide ( 5% weight ratio ) when user use. This polymer is just fit for 3D cure application.

This product can be maintain quality four years if you save a cool, dark place in the unopened state. Please use as much as possible as soon as possible after opening.

[ Photo polymer NAF202N ]

This product is a based by acrylic resin polymer. And curable by light in the UV and visible light region. ( Black color ). This twin peak sensitivity is useful for twin light source stereo lithography ( SLA ) system. This product is low peak of sensitivity for light wave but wide range. This application is useful for chemical operation in normal light condition. You can process of visible light cure test in normal room light.

This product is colored by black or blue and mix with cumene hydroperoxide ( 5% weight ratio ) when user use.

New vegetable photo polymer resin for SLA 3Dprinter
NAF2021 user price 8US$/500ml ( without shipping and pack cost )
Ask for us about technology sample for academic research. 15-02-2014
Ask for us about technology sample for business trade. 23-12-2014

Strong point of view:

1. NAF2021 still keep follow of many type of light power source.
   UV range light / UV range LED / Visible range LED / OHP halogen lamp / Visible laser.
2. NAF2021 is more low cost than old generation product.
3. When keep in stock condition then life time will be over 3 years.
4. We are modify of resin for each application by business user.



[ Sub monomer NAF201 ]

[ NAF201 ] is use as modeling accuracy modifier of the photo curable resin. This product is mix with monomer under 5% of weight ratio.

[ Hardener ]

Please use it as an agent for increasing sensitivity of the photo-curable resin this product. However, please note the natural curing by room light by a window of clear weather. After mix with photopolymer then life time will be about 3 month.

Please use it to read the instruction manual that comes with this product because it is harmful to the human body.
